CE Approved High Output Tempered Glass Making Machine,Glass Toughened Furnace For Sale

FOB Reference Price:Get Latest Price
$50,000.00 - $130,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Glass Toughened Furnace
Max. Glass Size:
Glass Toughened Furnace 2500*1500mm
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Machine Type:
Glass Tempering Furnace
Production Capacity:
15-18 loads/h(5mm)
Power(W):
355kw
Certification:
CE,ISO etc
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HUAXING
Voltage:
380v, 50Hz,3P
Dimension(L*W*H):
14800*7500*2500mm
Weight:
17000kg
Name:
Glass Toughened Furnace
Usage:
tempered/toughened glass
Tempering type:
Flat tempering furnace
Processable glass type:
float glass, low-E glass, tinted glass, patterned glass etc
Heating method:
Radiation
Glass thickness:
4mm - 19mm
Furnace heating wire material:
Cr20Ni80
Inverter:
Schneider, CONVO
PLC system:
Omron/Siemens
Touching Screen:
Hi-tech
Supply Ability
Supply Ability:
20 Set/Sets per Year Tempered Glass Making Machine
Packaging & Delivery
Packaging Details
1) normal package 2) wooden carton 3) according to customers' requirement
Port
Qingdao Port/specified port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 90 To be negotiated
Product Description

CE Approved High Output Tempered Glass Making Machine,Glass Toughened Furnace For Sale

Glass Toughened Furnace is used for producing large-size flat, tempered glass for architecture, and for furniture, shower cabins and kitchen, etc. The type of sheet glass can be various such as float glass, coated glass, tinted glass, soft low-E glass etc. It consists of loading table, heating section, cooling and tempering section and unloading table. When heated up to 700℃, glass is cooled and tempered quickly with large stress produced on the surface. When impacted strongly, the glass will be broken into small pieces without sharp corners.

Application Range of glass toughened furnace

1. Architectural glass: building, windows and doors,railing,staircase etc
2. Furniture glass: table top, glass showcase etc.

Technical Parameter of glass toughened furnace

Type
Max size (mm)
Min size (mm)
Thickness (mm)
Capacity  (m2/hr) (5mm)
Total power (Kw)
Floor area (mm)L*W*H)
HP2512
2500*1200
200*300
4-19
46
307
14800*7200*2500
HP2515
2500*1500
200*300
4 - 19
57
355
14800*7500*2500
HP2518
2500*1800
200*300
4-19
69
424
14800*9500*2500

Main Features of glass toughened furnace

1) traditional and classic model,special insulation layer design,lower furnace body temperature.
2) lattice intelligent heating mode,adjustable power,excellent glass heated uniformity.
3) upper and lower grid with independent lifting mechanism, ensure flatness.
4) advanced air compression technology

Detailed Images

Heating elements

Material: Cr20Ni80 alloy

Distribution: matrix structure

Features: zone heating, every heating zone is separately controlled.

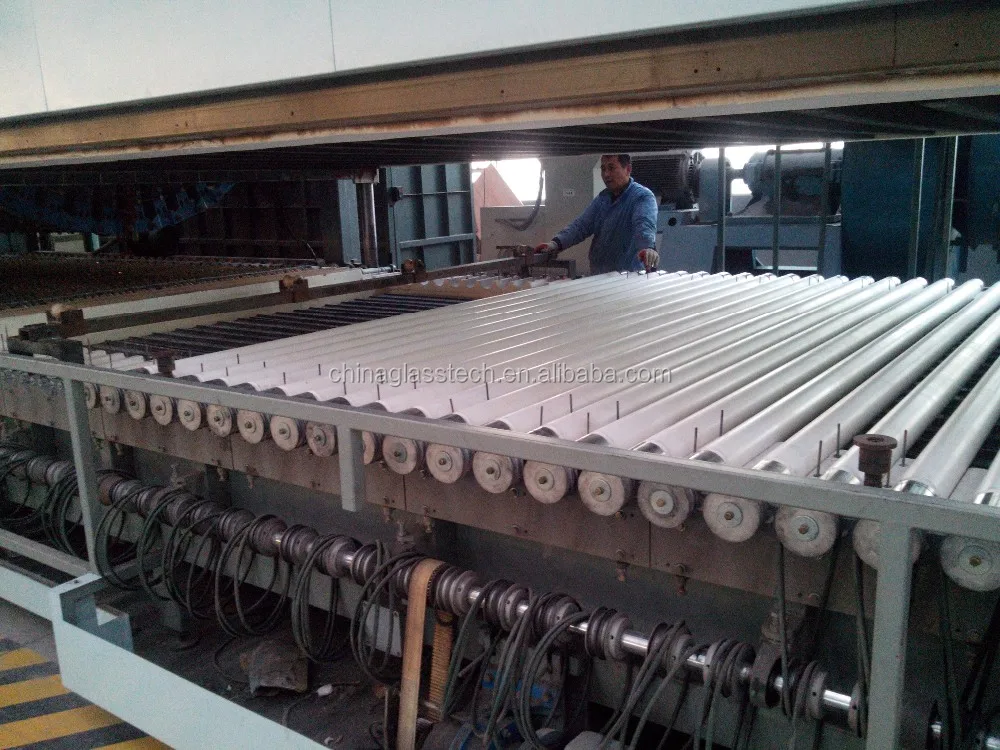

Quarts ceramic rollers

Brand: Chinese famous brand
Features: high machining accuracy, smooth surface

                  high temperature-resisting

                  wear-resisting

                  high flex resistance

                  high load capacity

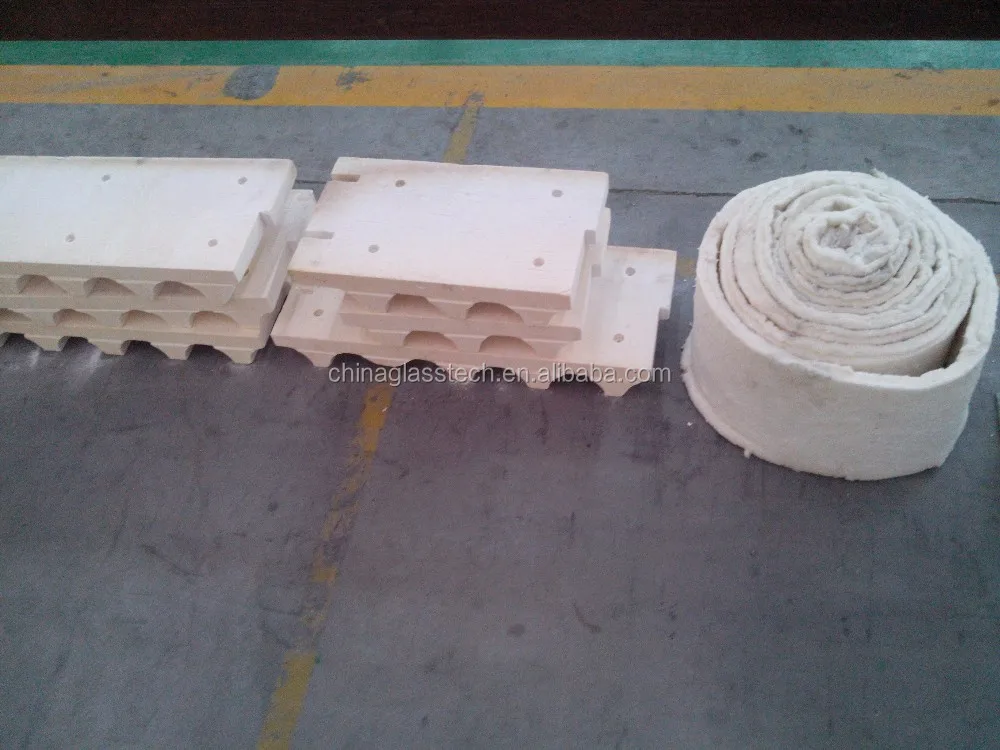

Heat-insulation material

Brand: Chinese brand Luyang

material: aluminium silicate fire-resistant fiber

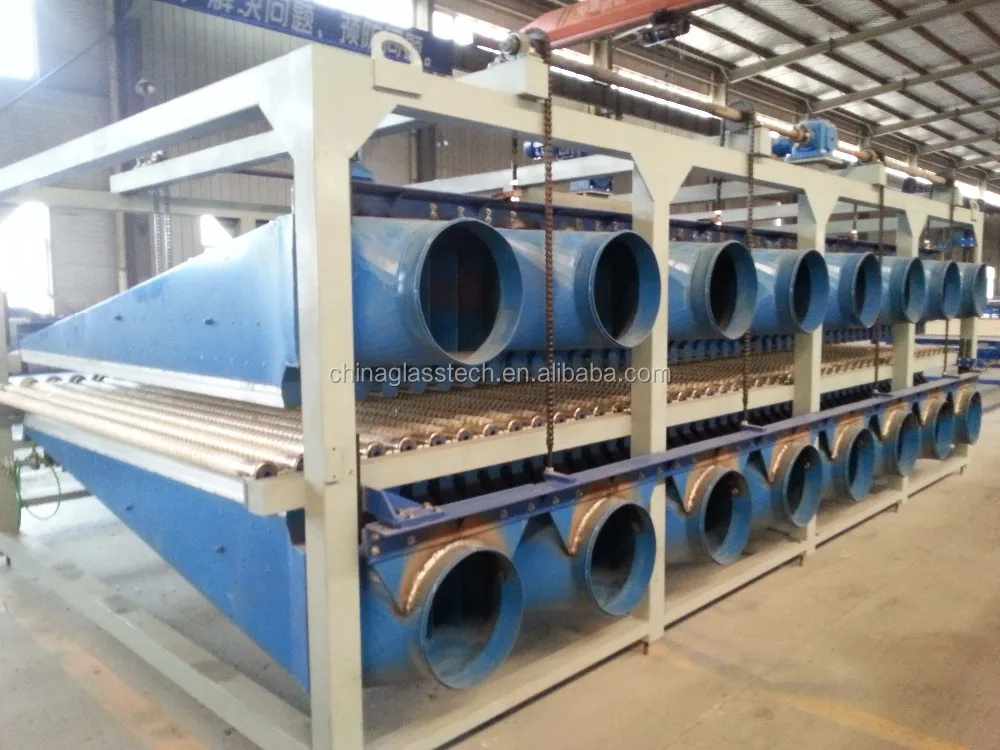

Cooling air grid

Material: aluminium alloy

Feature: intelligent controlling of the distance between glass and air grids as per glass thickness; adjusting wind pressure and wind flow; reduce wind spot on glass

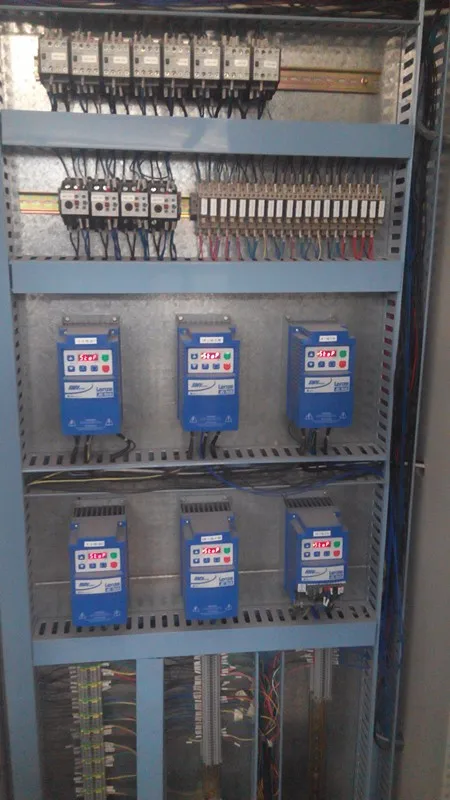

Electric parts

PLC system: Omron from Japan; Siemens from Germany

Frequency converter: Schneider from France

others: customized or famous Chinese brand

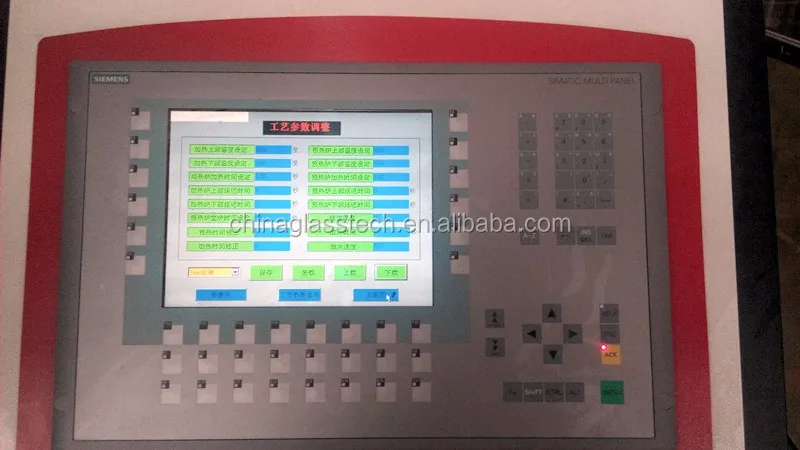

Touching screen human-machine interface

Brand: Hitech from Taiwan

Industrial personal computer: Tsinghua Tongfang

Function: read-write technical parameter;

automatic system controlling;

operating and adjusting machine;

auto diagnosis;

reminding and alarm


Packing & Delivery

Every parts separately packed.

Packaging material:
1. wrapped by plastic film
2. wooden case
3. full container

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Certifications

CE certificate

ISO certificate

BV certificate

Patent certificate

......

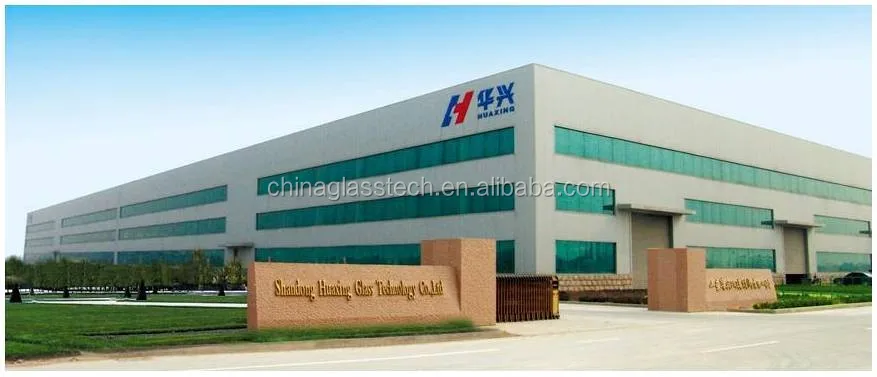

Our Company

China Glass Tech Co., Ltd, attached to Shandong Huaxing Group, the only one manufacturer of glass tempering furnace in Shandong province, was firstly established in 1957 as a machinery maker, professional in manufacturing glass machinery, stone machinery and agricultural machinery. Glass machinery making workshop covering more than 30,000 sqms, workers reaching 500, large production capability, lead time short to 2 months. products exported to more than 30 countries all over the world such as Poland, Saudi Arab, Iraq, Turkey etc.
